Power  Cable (STACIR & STACIR/AW)

Item:  STACIR & STACIR/AW

Standard:  IEC62004 / T-CEEIA 429-2020

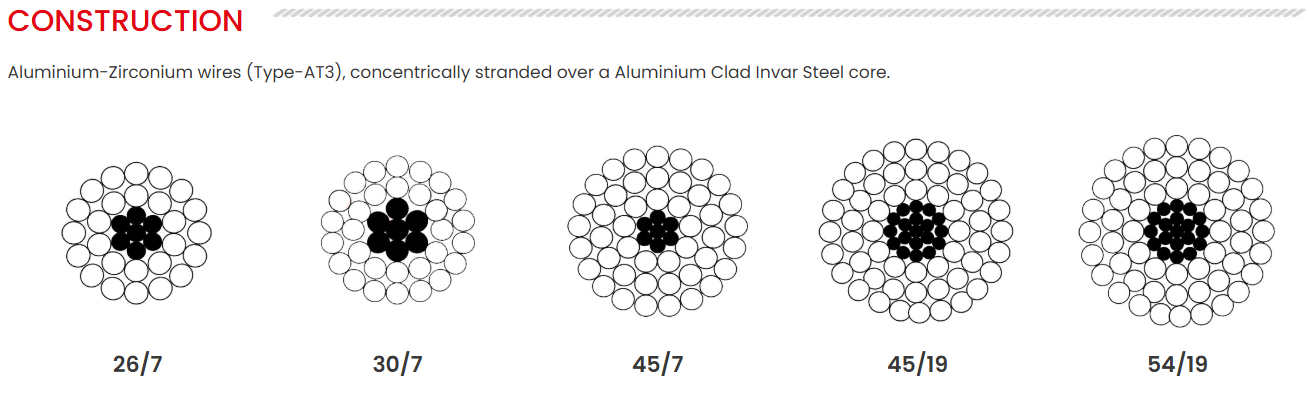

Conductor: 26 AT3/ 7 INVAR to 54 AT3/ 1 9 INVAR

Super Thermal-resistant Aluminum-Alloy Wire (STAL)

/Aluminum Clad Invar Wire

Section: 164 mm2—900 mm2

Application: STACIR/AW conductors are suited for re-conductoring applications.
The capacity of existing transmission line can be enhanced by simply replacing the existing conductor without any modification to the tower.
This conducoris sulable foroldline modification itcan kep the same sa whils increasing capacity
